AV-1250 Cage Battery > Free Range/Breeders System

본문 바로가기

Products

Free Range/Breeders System

AV-1250 AV-1250 Cage Battery

본문

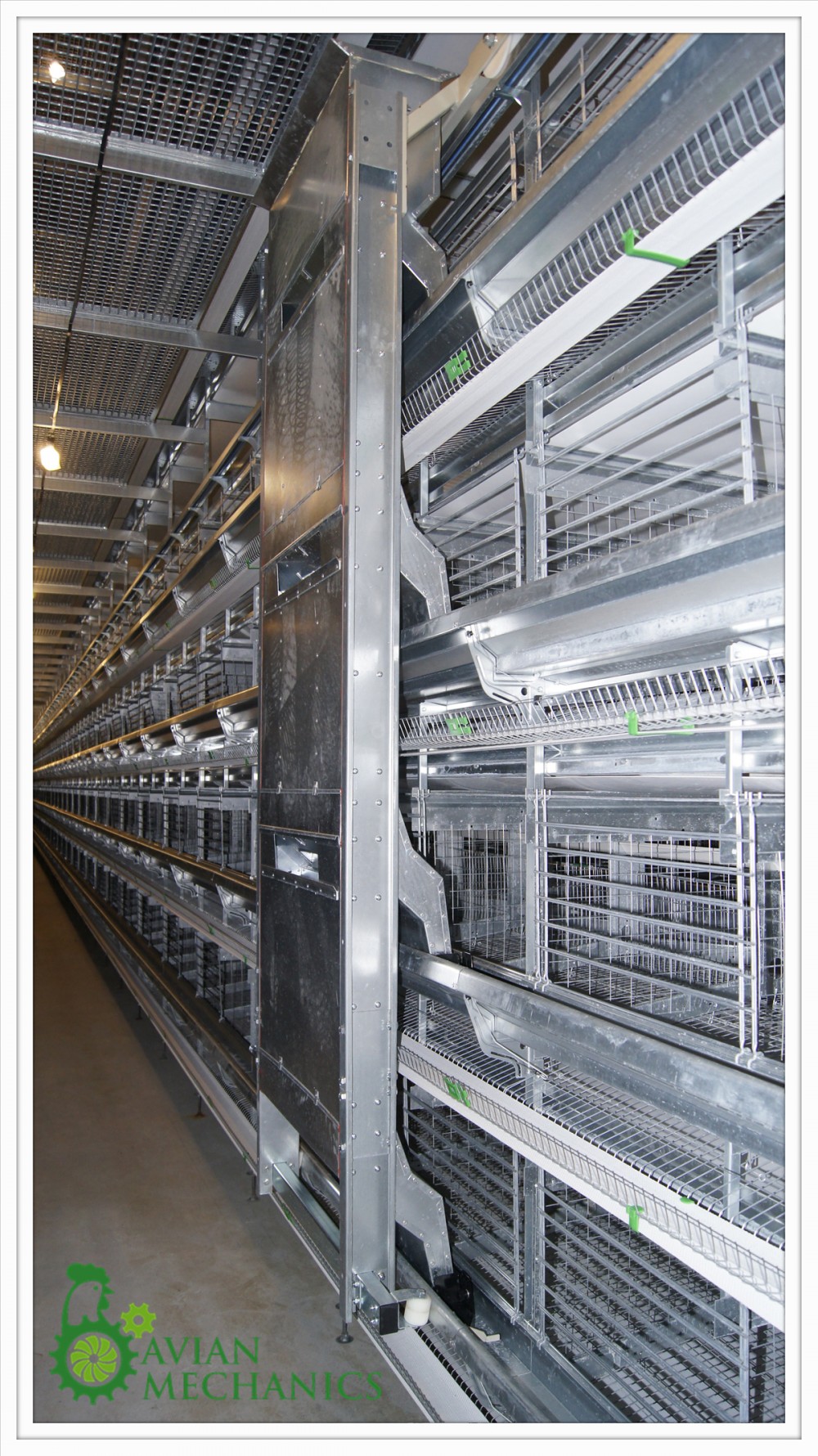

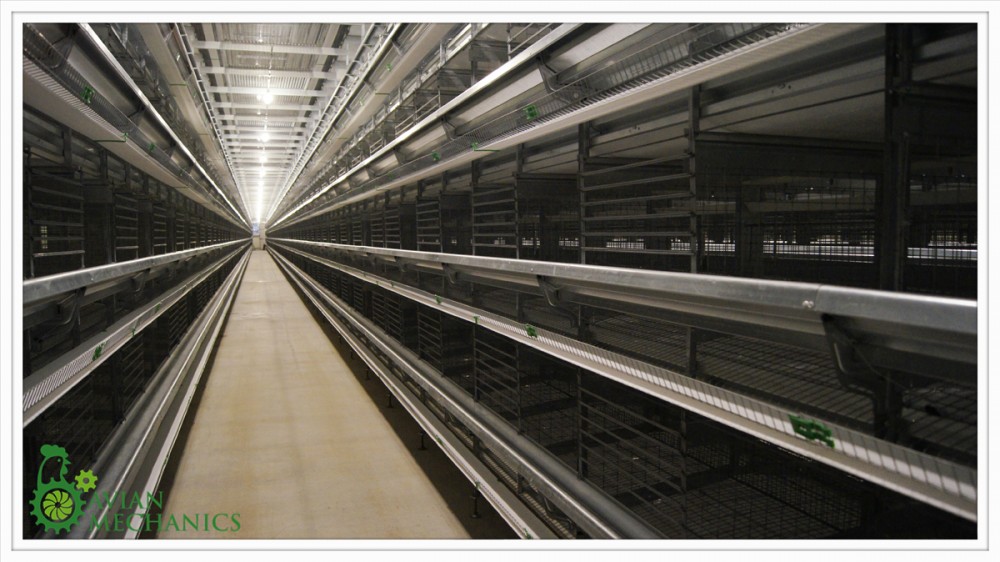

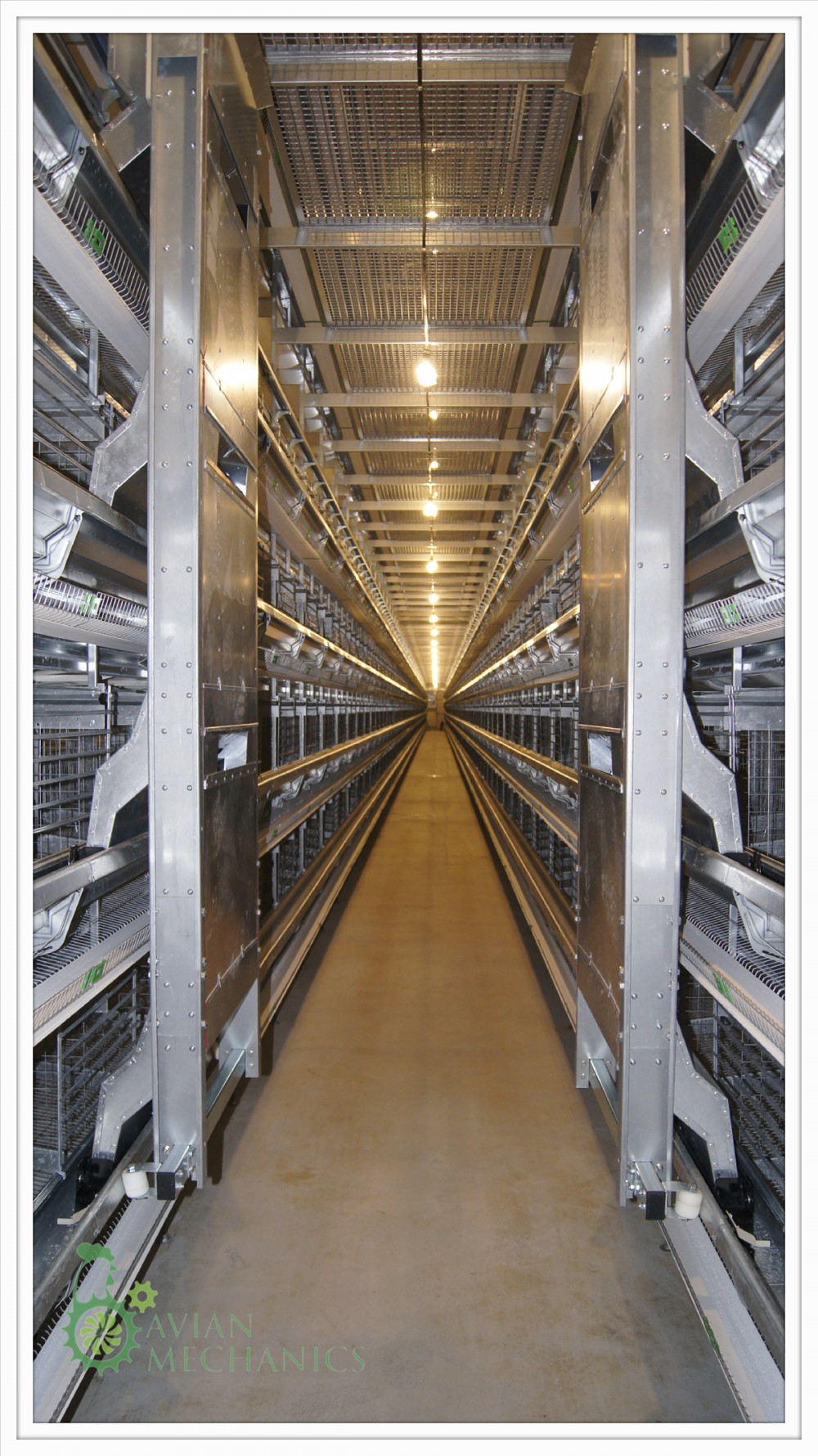

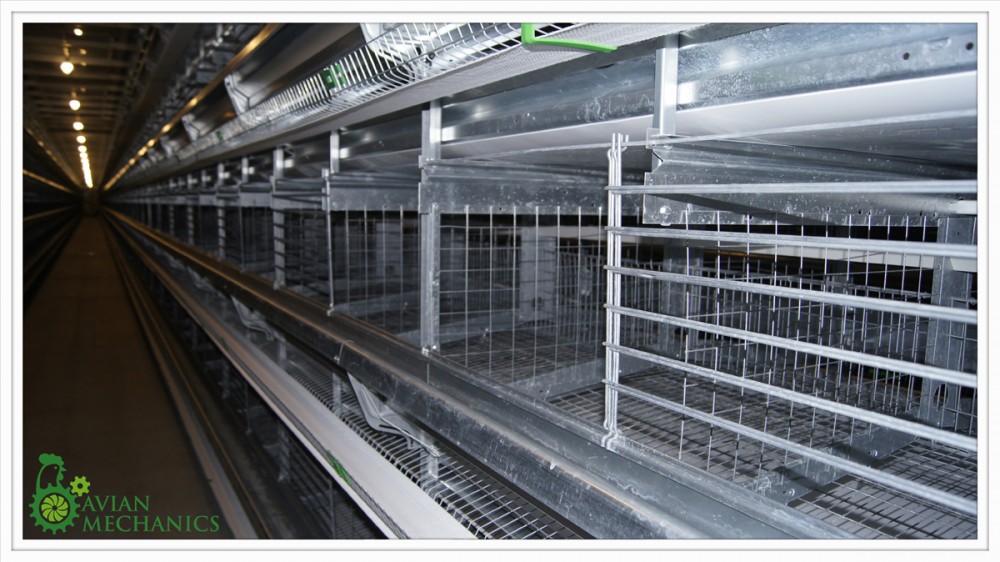

Our AV1250  enrichable egg cages are a cage system designed for high breeding performance that can be easily converted to the European enriched cage system.

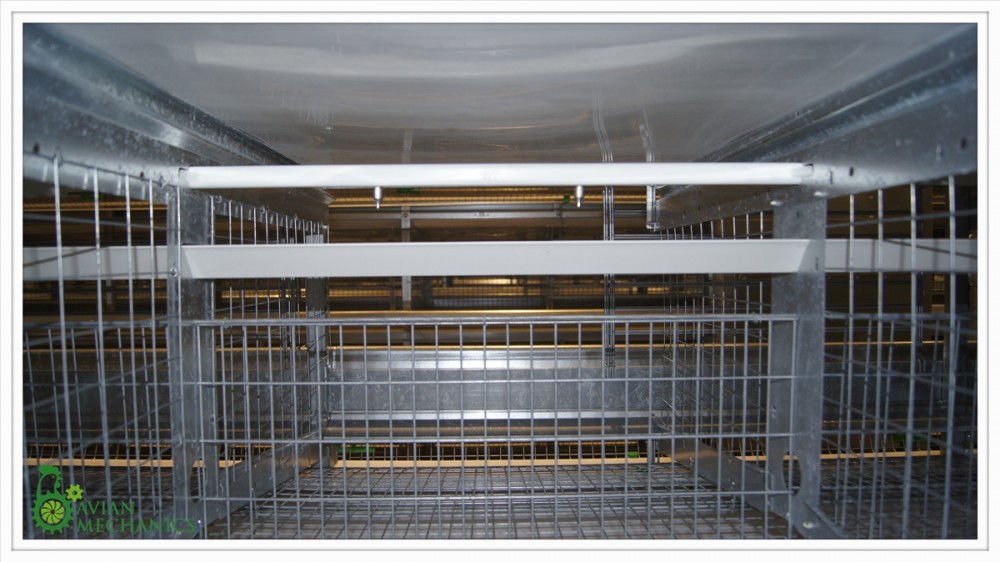

AV1250 model cages, the eyes are divided by the intermediate partition plate fitted between the upper partition plate (1.00mm) and the lower partition plate
(1.50mm), which are mounted on the cage poles. AV1250 model cage, the battery also has a depth of 625mm, a front size of 600mm and a height of 680mm.
9 (nine) chickens can be breed in one eye.

The materials used in the main structure of the cage consist of high-standard hot-dip galvanized sheet and wire materials. All galvanized sheets and wires used in cage constructions and cage sections are of the best quality. Galvanized coating ratio and shape are vitally essential to prevent deformation caused by

fertilizer-induced acid, rust, and mold. Deformations in the cages cause shortening of the cage's life and the health of the animals in the cage.


Cages are created to be unaffected by ground movements. There is a 2 mm thick cage leg at every 60 cm and wide-legged pads placed under these legs.

In addition, the cage system is fixed with steel pulling dowels in every ten legs. The system gains maximum resistance in this view can be installed up to seven

layers without a platform.
